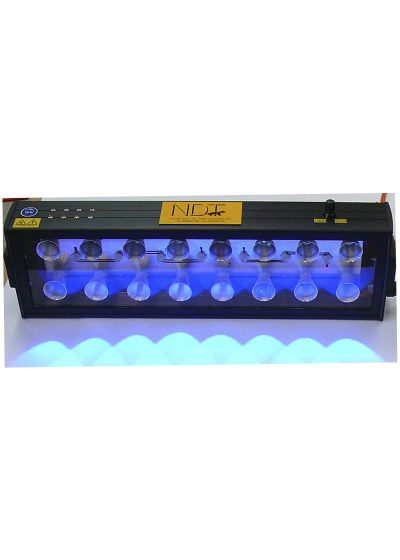

Stationary UV Lamp
High intensity UV LED lamp (up to 7,000 μW/cm² at 38 cm/15 inches), with a very broad inspection area for a higher inspection productivity.
Description
Brochure
- High efficiency long-lasting UV LEDs, Certified for wavelength of 365 nm
- Indicators of burnt-out LED
- UV LEDs produce a very low visible light emission of less than 1 footcandle / 10 lux
- Instant-on operation, lamp reaches full intensity immediately
- Very low power consumption (up to -90% energy savings compared to 400W UV lamps)
- Safety: Safe Power Supply (24V DC), mercury and lead free
- According to: ASTM, ASME, AMS, ISO, ... standards for fluorescent magnetic particles and liquid penetrants inspection
- Available in different sizes and models according to the Customers needs
- Special version with adjustable white light dimmer to be used with dual-colored magnetic particles Elite FW1
Model 16-7 (16 UV LEDs and 7 white LEDs) Lamp size: 560 x 170 x 105 mm
- Indicators of burnt-out LED
- UV LEDs produce a very low visible light emission of less than 1 footcandle / 10 lux
- Instant-on operation, lamp reaches full intensity immediately
- Very low power consumption (up to -90% energy savings compared to 400W UV lamps)
- Safety: Safe Power Supply (24V DC), mercury and lead free
- According to: ASTM, ASME, AMS, ISO, ... standards for fluorescent magnetic particles and liquid penetrants inspection
- Available in different sizes and models according to the Customers needs
- Special version with adjustable white light dimmer to be used with dual-colored magnetic particles Elite FW1
Model 16-7 (16 UV LEDs and 7 white LEDs) Lamp size: 560 x 170 x 105 mm
