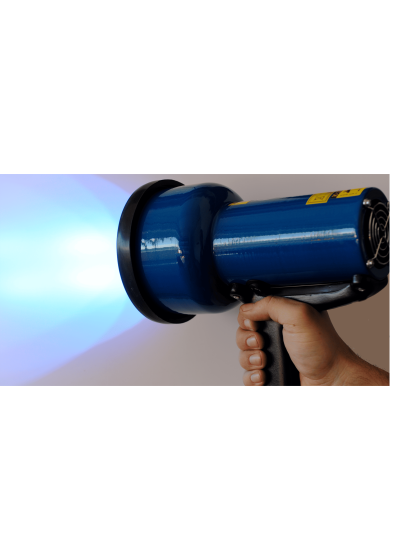

Shuttle 5 LED UV Lamp

Very high intensity UV LED lamp (over 10.000 μW/cm² at 38 cm/15 inches), with a very broad inspection area of over 40 cm (16 inches about - minimum 1.000 μW/cm2) diameter for a higher inspection productivity. Same characteristics of 12.120 Shuttle LED UV Lamp but featuring 5 high efficiency last generation UV LEDs, Certified for wavelength of 365 nm, to provide the broadest inspection area for a portable UV lamp in the NDT industry.

Description
Brochure

- 4 high efficiency UV LEDs, Certified for wavelength of 365 nm
- Up to 30,000 hours LED bulb life: never change a UV lamp again!
- UV LEDs produce a very low visible light emission of less than 2 footcandles / 20 lux (special version less than 5 lx)
- Instant-on operation, lamp reaches full intensity immediately
- Very light: 790g (1,74 pounds)
- 1 white light LED to allow also for visible light inspection
- Very low power consumption ( < 15W )
- 3-way switch: UV ON - OFF - white light ON
- Mercury and lead free
- Rubber protected glass lens to protect LEDs from damage
- Built-in fan keeps LEDs cool to maintain optimum light output during extended use
- According to: ASTM, ASME, AMS, ISO intensity specifications for fluorescent liquid penetrants and magnetic particles inspection
- Safe Power Supply: 12V through mains adapter (included). The lamp is also available with integrated lithium battery.


Note: Also available in special version with adjustable white light dimmer to be used with dual-colored magnetic particles Elite FW1
