Table Type Desktop Transmission Densitometer DT-300

Replaces the X-Rite 301 Densitometer

Characteristic:

 - LED Lighted Table, 5 steps of luminance and 2 areas for selection

- High spot luminance, simplifies location of image areas to measure
- Program Mode for custom calibration
- The densitometer will remain in proper alignment even though it is picked up by the arm
- Calibrated to AGFA film strips
- Measuring Range: 0 - 6.0D, High Accuracy±0.02 D
- No warm-up time
- Soft Rubber probe head to protect films
- PC Utility available(Recalibration and Add Logs)

NEW Upgrade of DT-300

1. Higher luminance of the spot LED.
    ------This will help the user locate the spot easily when he check films of 4.0D or higher.

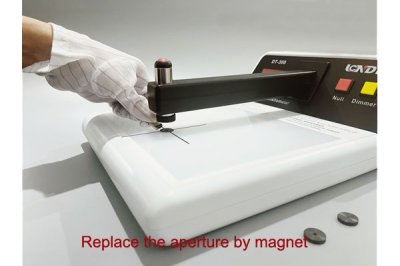

2. Redesign of the aperture, high quality and it will fixed by magnet.
    ------ This will improve the Accuracy and Repeatability. And very easy to replace.

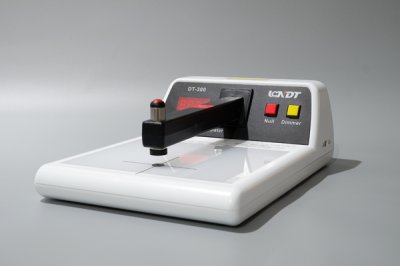

The DT-300 is table type design, robust, easy to use, densitometer for measuring the black and white transmission x-ray film.

The unit has been designed for using in darkrooms, laboratories and offices. It provides highly repeatable and accurate measurements of film densities up to 6.0D. Because of high luminance of spot light, it is more subtle than can be seen by the naked eye.

The LED light table can be dimmed in 5 steps. And there are 2 sections of light for choose. You can easily see and measure film by this densitometer.

Optional Components:

AGFA Density Strip, 15-step, certified
