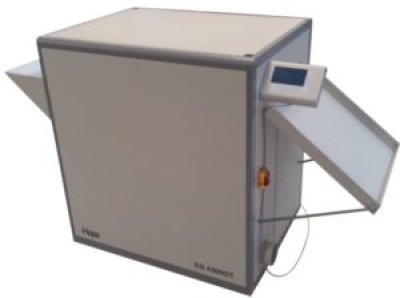

EG43NDT Film Processors
Our NDT film processor is designed to provide high quality processing of your NDT film. We can operate with film from all leading suppliers such as Carestream, Kodak, Fuji and Agfa /GE.
TECHNICAL SPECIFICATIONS
Brochure
DESCRIPTION
| Specifications | |
| Inlet width | 43 cm/17" |
| Material width min./max | 5-43 cm/2.17" |
| Min. /max. film length | 15 -500 cm/ 5 -196" |
| Tank capacity Dev. / Fix / Wash | 15 L/ 4 US gal. |
| Rack length dev. | 46 cm/18" |
| Standard processing cycle min.- max. | 2 12 min |
| Speed at 100 sec. dev. immersion time | 28 cm/min / 11"/min |
| Parameter settings | |
| Dev./fix./wash temperature range | 20 -45°C/ 68 -113°F |
| Dry temperature range | 25 -65 °C/77 149 |
| Exhaust blower | Built in |
| Circulation rate dev., fix. | 10 l/min. / 2.1 US gal |
| Replenishment rate dev / fix | 0 2000 ml/m2 |
| Water consumption Max (operate) | 0-10 l/m2 / 0-2.1 US gal/m2 |
| Consumption, emissions | |
| Max. power consumption | 2.450 VA |
| Operate, average power consumption: | 2.100 W |
| Power save ( Idle), average power consumption: | 600 W |
| Night mode, average power consumption: | 450 W |
| Emission of heat to room (operate) | 2.400W |
| Connections | |
| Exhaust connection | Ø 10 cm/4" |
| Water connection | 3/4" pipe thread |
| Drain connection | 3 x1"hose nipple |
| Replenishment containers | Dev./fix. 30l/8 US gal. |
| Power supply | |
| 1/N/PE ~ 230V, 50/60 HZ | 1 x 13 amp |
| Dimensions (incl. receiving tray and feed tray) | |
| Length total | 181 cm/71" |
| Length on floor | 98cm /38.5" |
| Width | 77cm / 30.3.1" |
| Height | 110 cm/43.3" |
