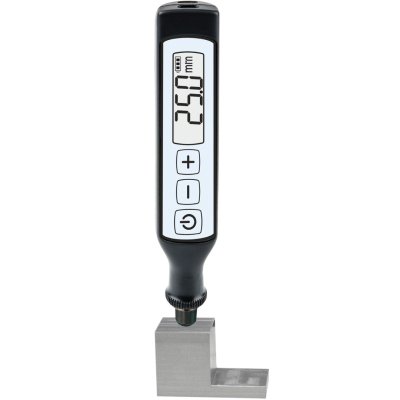

A1207 PenGauge - pocket-size ultrasonic thickness gauge
Features and Benefits
- Compact design: probe and display unit in one and the same instrument - Never break a cable again!
- Direct readout of the digitally displayed thickness value on bright LCD display
- Easy and straightforward operation via two keys only
- Calibration to known wall thickness or known material velocity
- Hot-pluggable built-in exchangeable 7 MHz dual-crystal probe for all standard applications or optional 4 MHz single-crystal probe for extending measurement range
- Measurement ranges from 0.7 mm to 150 mm (0.028 inches to 5.9 inches) depending on the material and surface
- A-scan capability on iOS and Android APP included in the package
Description
Application
Download
Product Description
A revised model of the pocket-type thickness gauge combining usability and convenience with new functional capabilities.

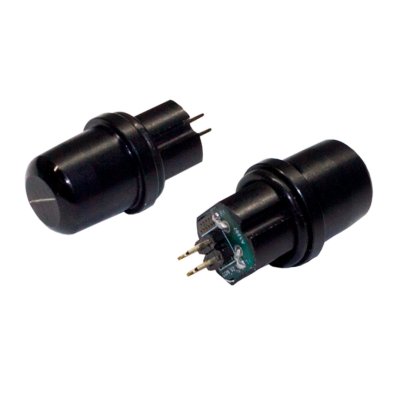

The thickness gauge is enclosed into a one-piece case with a removable tip having a built-in changeable wearproof dual-crystal transducer with an operating frequency of 7 MHz.

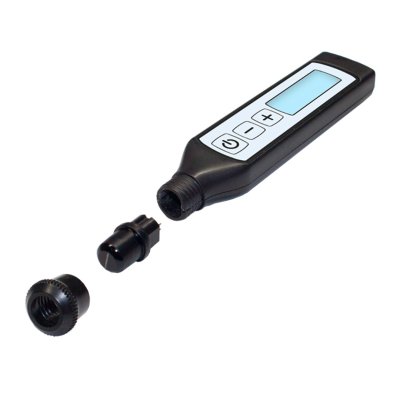

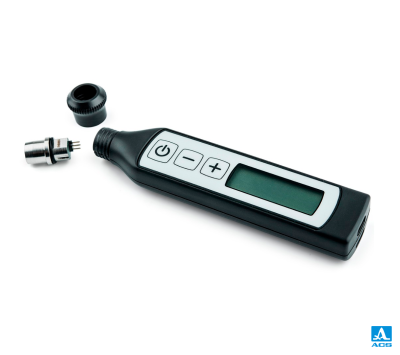

The hot-pluggable built-in transducer can be easily replaced by the user by means of unscrewing the tip and detaching the transducer capsule from the instrument without extra tools.
The instrument has a small size and weight (can be carried in a pocket), simple adjustment, and is easy to use.

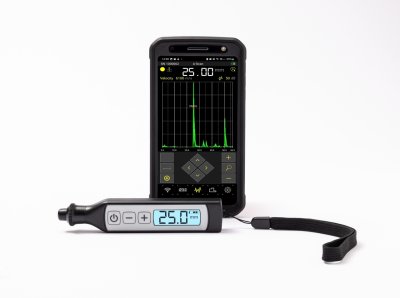

The built-in Bluetooth module provides communication and real-time display (onlinethickness gauge) of digital measurement results and A-Scans of the signals to the screen of a smartphone or a tablet PC.
A dedicated software application allows viewing the digital measurement results and A-Scans of the signals for iOS & Android devices.
There is Automatic calibration of delay time (zero) of the built-in transducer.
A revised model of the pocket-type thickness gauge combining usability and convenience with new functional capabilities.
The thickness gauge is enclosed into a one-piece case with a removable tip having a built-in changeable wearproof dual-crystal transducer with an operating frequency of 7 MHz.
The hot-pluggable built-in transducer can be easily replaced by the user by means of unscrewing the tip and detaching the transducer capsule from the instrument without extra tools.
The instrument has a small size and weight (can be carried in a pocket), simple adjustment, and is easy to use.
The built-in Bluetooth module provides communication and real-time display (onlinethickness gauge) of digital measurement results and A-Scans of the signals to the screen of a smartphone or a tablet PC.
A dedicated software application allows viewing the digital measurement results and A-Scans of the signals for iOS & Android devices.
There is Automatic calibration of delay time (zero) of the built-in transducer.
