PECT instrument

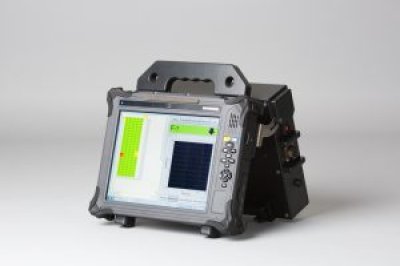

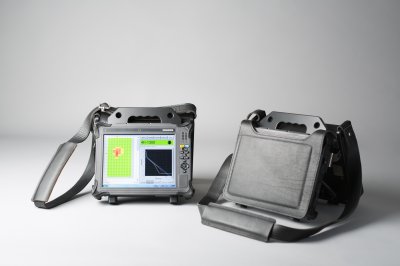

The PECT instrument comprises a ruggedized tablet computer connected to a data acquisition unit. The set is splash water tight, robust and easy to operate. Data collection is fast (two measurements per second) and has a scanning mode. The data is analysed in real-time with various quality control features that assists the operator to correctly analyse the data.
Typical performance data
Brochure
| Material | Carbon steel and low-alloyed steel |
| Lift-off range | 0 250 mm (0-10) |
| Wall thickness range | 3 50 mm (0.12-2) |

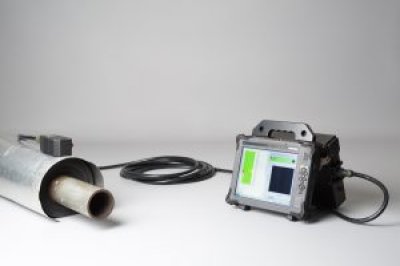

| Insulation covers | PECT can measure through non metal, aluminium and stainless insulation covers; The inspection performance of PECT through galvanised weather sheeting depends on its properties |
| Cables | Standard cable length is 8m (26ft). Cable length of up to 100m (328ft) can be provided. |

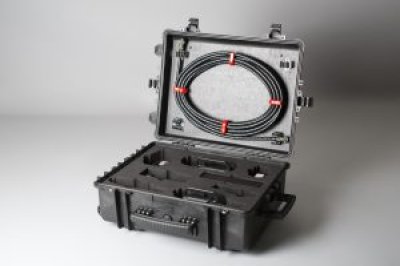

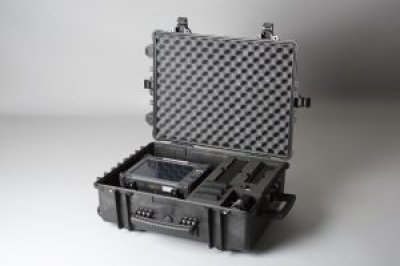

| Transport | The equipment is transported in two Explorer cases, 67cm x 51cm x 26cm, (26x 20 x 10), each weighing 45 lbs. 20 kg |
